TIPES WIFI MC8010 MC8020 MC8030

Integrate USTB and TAI antennas wirelessly into your TIPES system with TIPES WIFI.
The new product line combines proven antenna technology with modern wireless data transmission, offering maximum flexibility for installation, expansion, and modernization of existing setups.
The connection is established directly between the modules – no local Wi-Fi network required.

	MC8010 Base Module The MC8010 is the central hub of TIPES WIFI and is always required. It connects directly to the USTB bus of the TIPES MC control unit, serving as the wireless interface for all connected antenna modules. A single MC8010 can operate multiple MC8020 and MC8030 modules simultaneously. Central base module for the MC80x0 product family Direct connection to the USTB bus of the TIPES MC unit Required for the operation of MC8020 and MC8030 Supports multiple connected antenna modules MC8020 and MC8030 can be used in combination Antennas are treated by the MC like bus antennas
	MC8020 USTB Antenna Module The MC8020 module wirelessly connects your USTB antennas to the MC8010 base module. This allows for the flexible integration of USTB antennas without the need for continuous bus cabling running to the MC control unit. Upon initial use, the MC8020 automatically pairs with the first MC8010 it detects and permanently save this connection. Wireless integration for USTB antennas Connection to the MC8010 USTB bus module Multiple MC8020 units can be operated with one MC8010 Automatic initial pairing with the received bus module Permanent save the paired connection Requires an EOL (End-of-Line) terminator and a power supply unit
	MC8030 Reading Unit Module The MC8030 is designed to integrate existing old TAI antennas into the modern TIPES WiFi system. It connects the antennas wirelessly to the MC8010 USTB bus module, making it an ideal replacement solution for your old reading unit. The initial pairing takes place automatically and is permanently save. For the wireless connection of old TAI antennas Wireless link to the MC8010 USTB Bus Module Multiple MC8030 modules can connect to one MC8010 Suitable as a replacement for the Supra (TIPES WIFI with two MC8030 modules) Maximum antenna cable length: 15 m The old Supra is not supported Automatic initial pairing with permanent save Power supply required

Overview of connection options

The images illustrate the flexibility with which TIPES WiFi modules can be combined. The MC8010 USTB bus module always serves as the base unit and connects to the TIPES MC control unit.
Depending on the application, MC8020 USTB antenna modules, MC8030 reading unit modules, or a combination of both module types can be used. This enables the implementation of pure USTB installations, TAI connections, and mixed system configurations.

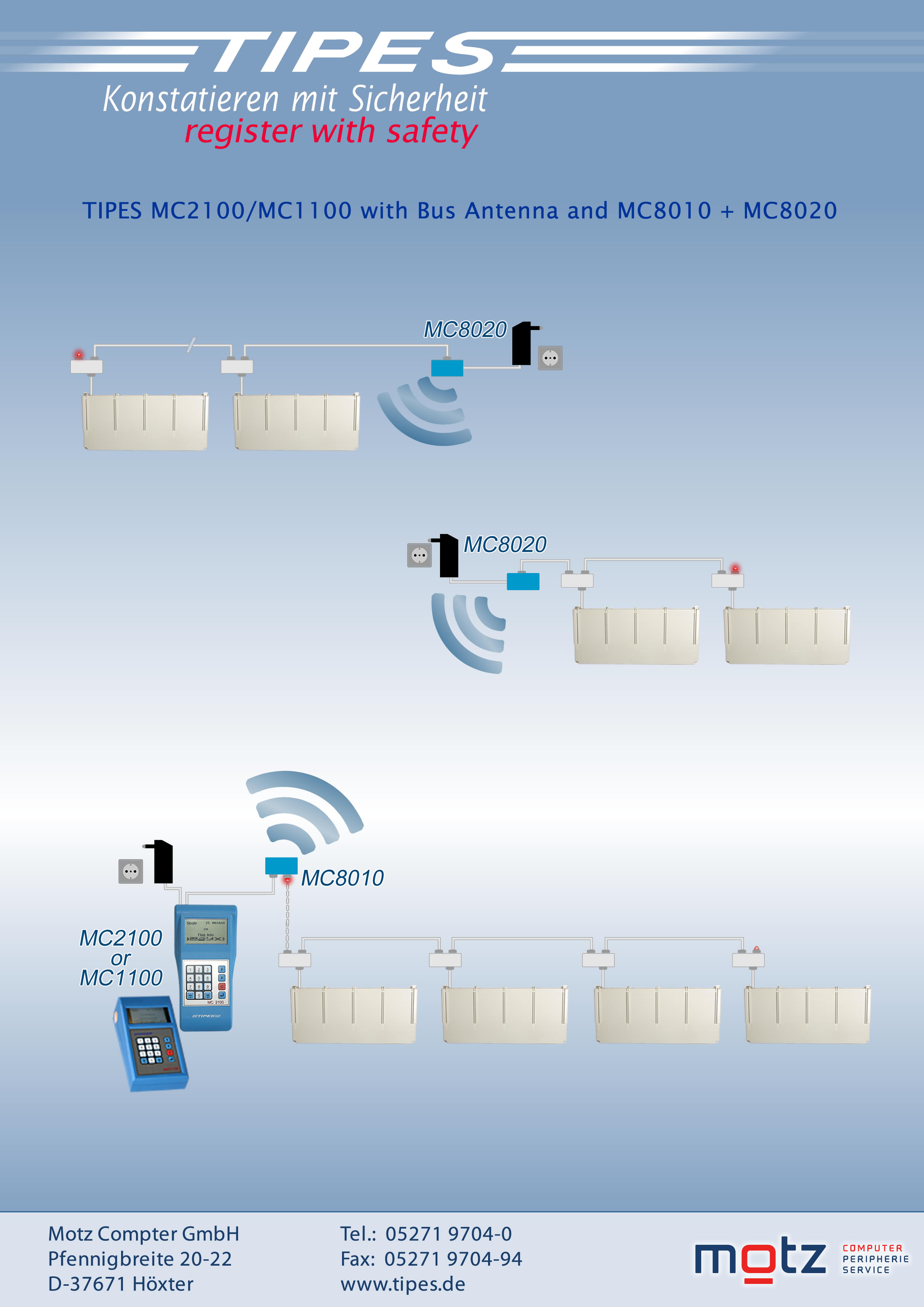

	MC8010 and MC8020 with USTB antennas

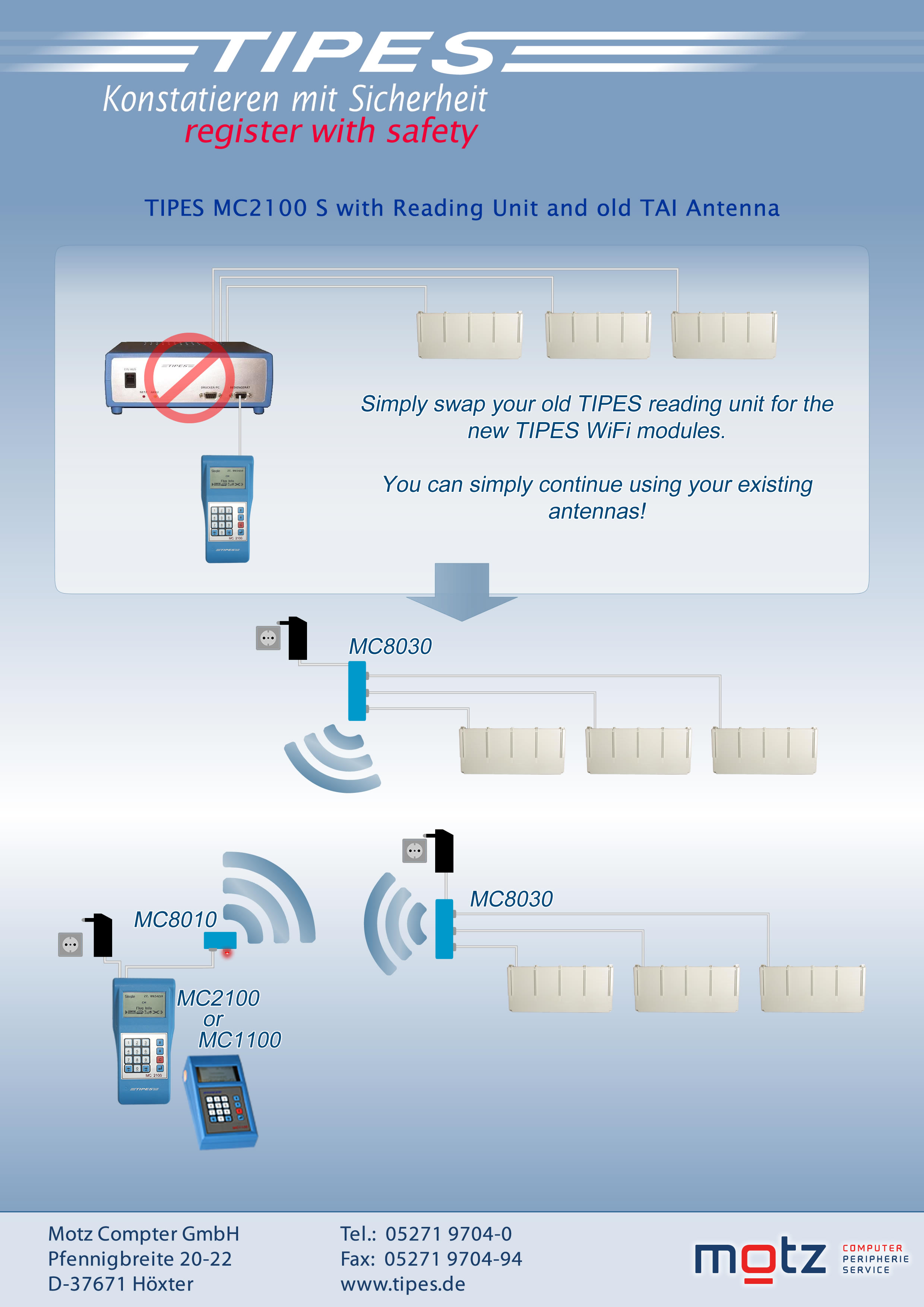

	MC8010 and MC8030: The reading unit module replaces your old TIPES reading unit.

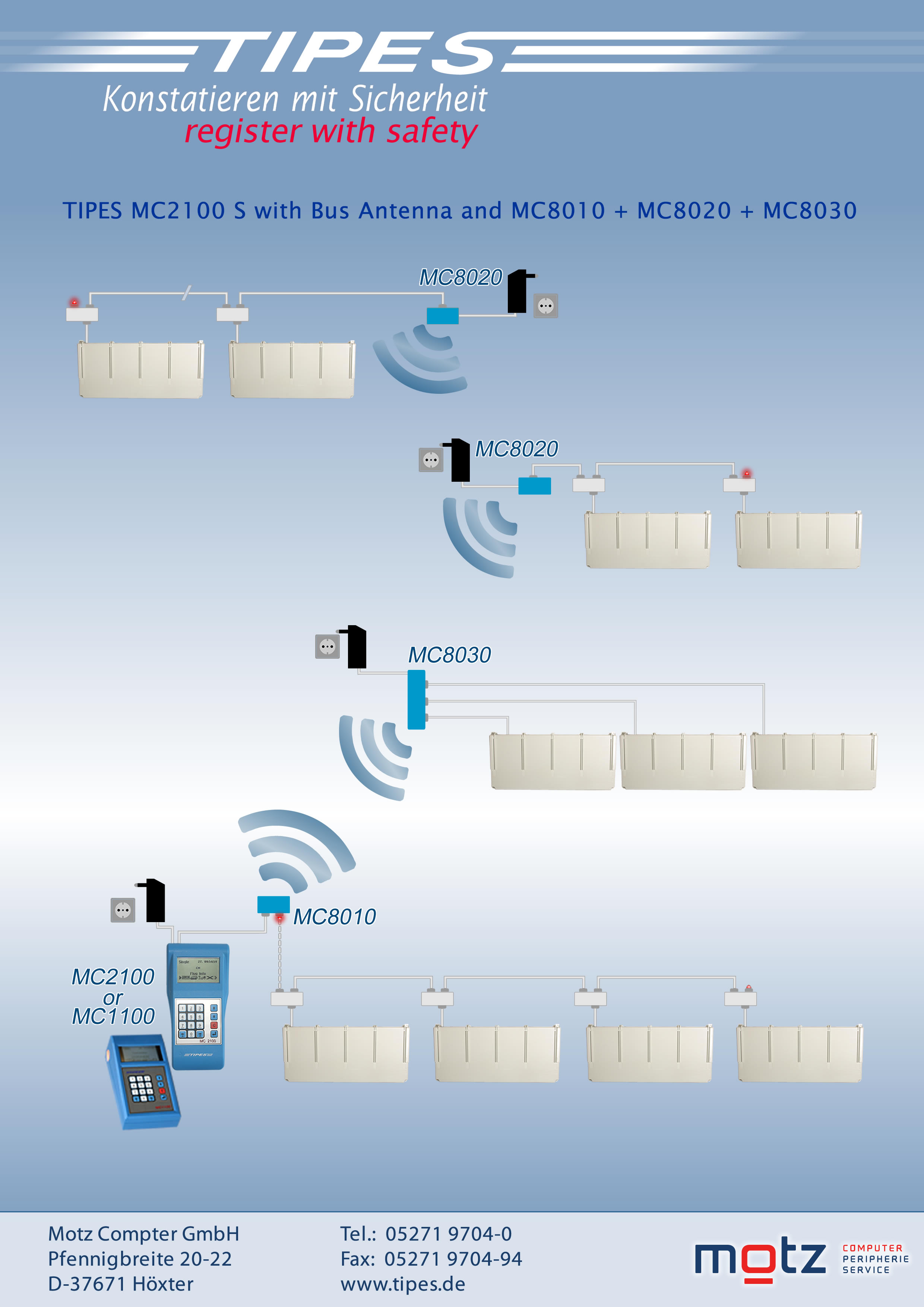

	MC8010 + MC8020 + MC8030: Hybrid configuration combining both modern USTB and old TAI antenna modules in one system.
